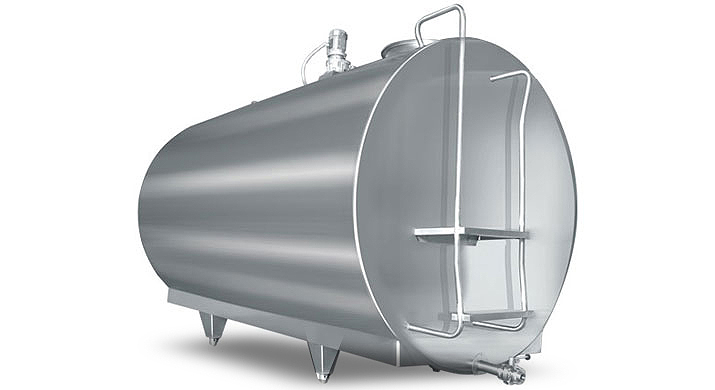

Closed Type Bulk Milk Cooler

This type of milk coolers are horizontal cylinder type coolers with adjustable legs for uneven floor. It has safety design with evaporator and crash test 65 bar.

• Automatic C.I.P system programmed through controller with five stage washing cycle.
• Individual peristaltic pump for detergent.
• Extreme efficiency of washing, due to new design of spray system.
• Digital milk volume measurement.

Tank

• Vertical open type tank and Horizontal
  cylindrical type tank.
• AISI 304 Stainless steel inner and outer vessel.
• Smooth inner sides, rounded angles, perfectly polished welding.
• Adjustable legs for uneven floors.
• Bottom designed to ensure total drainage of milk.
• Safety design of Evaporator, Crash test at 65 Bar.
• Uniform insulation with precisely controlled infusion of high density environment friendly
  polyurethane foam.
• High precision stainless steel dipstick (AISI 304) for esay and direct volume reading in mm.
• Manhole with AISI 304 SS close fitting cover with locking provision.
• Butterfly valve outlet with locking & sampling provision.

Refrigerating Plant

• Direct expansion.
• No freezing of milk with all refrigerant.
• Cost saving due to higher cooling efficiency.
• Performance as per class 2 all ISO 5708
  standards.

Electricals

• Milk tank controller manages following functions:
• Milk temperature control.
• Milk temperature digital display.
• Agitation programme.
• Compressor start up programme.
• Extra protection against uneven voltage
  fluctuations for rural areas.
• Electrical supply – Single phase 220 volt 50 Hz. or Three phase 415 volt 50 Hz.

Optional

• Automatic C.I.P. system programmed through
  controller with five stage washing cycle.
• Individual peristaltic pumps for detergent.
• Extreme efficiency of washing, due to new design
  of spray system.
• Digital volume measurement.
