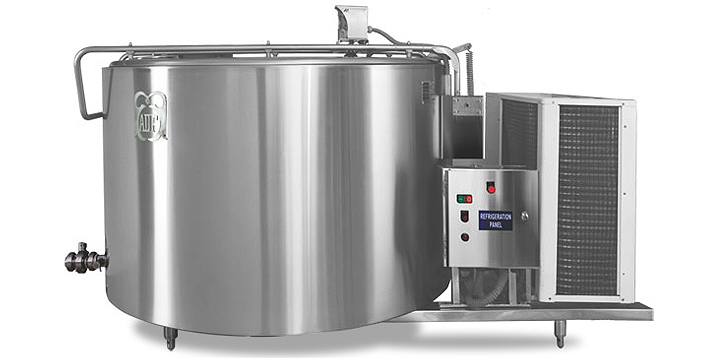

Open Type Bulk Milk Cooler

Open milk coolers are vertically open and have AISI 304 stainless steel inner and outer vessels. These cans are made with perfection as you can see polished welding, perfect smooth inner sides, round angles.

• Bottom design to ensure drain of milk.
• Fine insulation with precisely controlled infusion of eco friendly polyurethane foam.
• Manhole with AISI 304
• Butterfly valve outlet with locking and sampling provision.

Tank
• Vertical open type tank and Horizontal
cylindrical type tank.
• AISI 304 Stainless steel inner and outer vessel.
• Smooth inner sides, rounded angles,
perfectly polished welding.
• Adjustable legs for uneven floors.
• Bottom designed to ensure total drainage of milk.
• Safety design of Evaporator, Crash test at 65 Bar.
• Uniform insulation with precisely controlled
infusion of high density environment friendly
polyurethane foam.
• High precision stainless steel dipstick (AISI 304)
for esay and direct volume reading in mm.
• Manhole with AISI 304 SS close fitting cover with
locking provision.
• Butterfly valve outlet with locking & sampling
provision.
Refrigerating Plant
• Direct expansion.
• No freezing of milk with all refrigerant.
• Cost saving due to higher cooling efficiency.
• Performance as per class 2 all ISO 5708
standards.
Electricals
Milk tank controller manages following functions:
• Milk temperature control.
• Milk temperature digital display.
• Agitation programme.
• Compressor start up programme.
• Extra protection against uneven voltage
fluctuations for rural areas.
• Electrical supply – Single phase 220 volt 50 Hz. or
Three phase 415 volt 50 Hz.
